TRANSMITTER

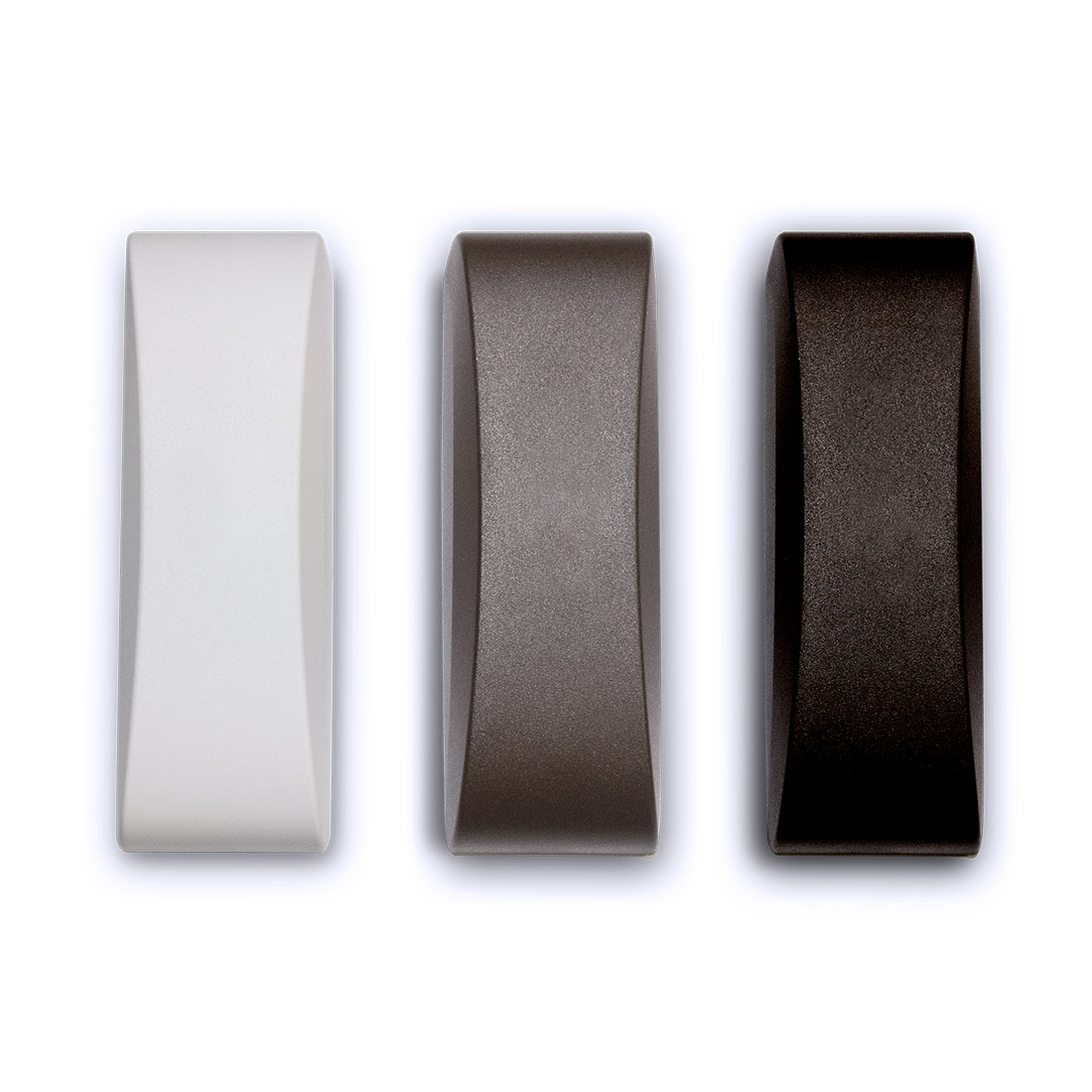

APC mini

TRANSMITTER FOR MAGNETIC CONTACTS

Technical features
  • Power supply: 3 V  (CR2032 lithium)
  • Absorption in standby: 4 µA max
  • Transmission frequency: 433.42 / 434.42 MHz
  • Low battery power: 2.2 V
  • Operating temperature: from 0 °C to +40° C
  • Dimensions: 84 x 30 x 20 mm
  • Housing: ABS
To download the manuals available for this product, log in or register.
Register

The APC Mini contact transmitter is a radio transmitter controlled by a microprocessor for alarm signals generated by 2 types of contacts: cable contacts with a digital pulse counter (4 fixed pulses), nc external magnetic contact or internally bypassable reed bulb. Input 1 is intended for magnetic contact only and sends the transmission both for opening and closing, indicating the status of (OPEN/C – CLOSED/C) to the system. Input 2 can be programmed as a wired contact for rolling (roll-up) shutters by sending the “ALARM” transmission or as a magnetic contact; sending the ALARM AUX transmission is for opening only. It is fitted with an interference switch both on the cover and on the bottom. On the board, there is a second REED intended to protect the device from magnetic interference in case an attacker attempts to keep the REED of the magnetic contact closed. The control panel identifies each entry activation individually. Radio range: 250 m in an open field.
